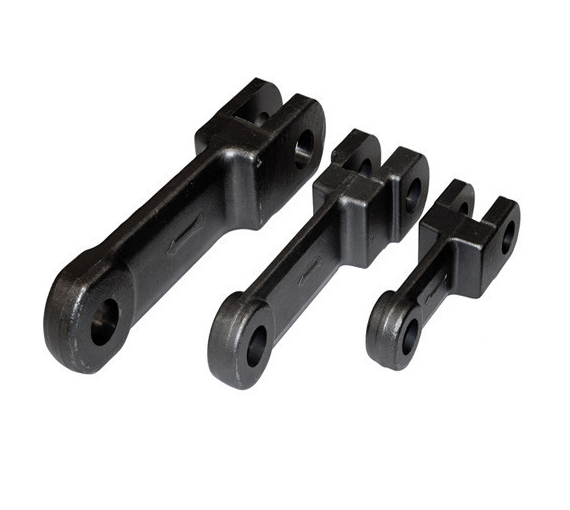

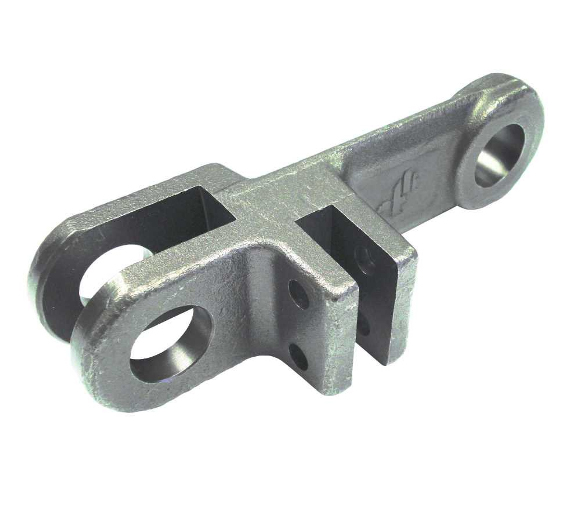

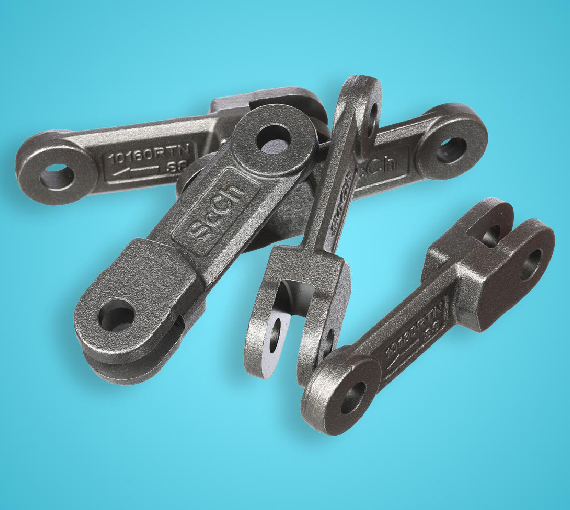

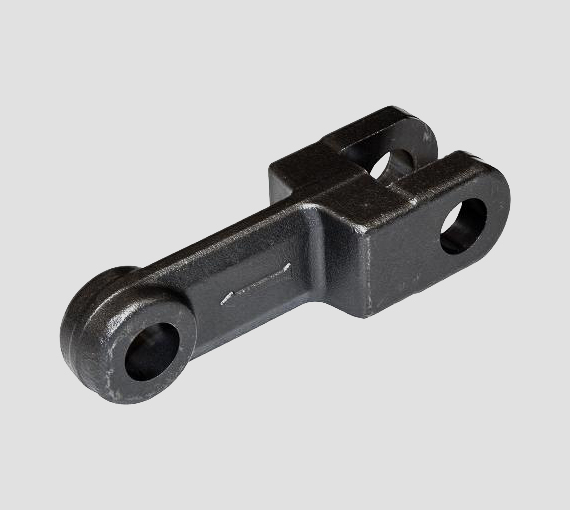

Drop Forged Chains

Maximum chain strength and wear resistance is achieved by selection of appropriate raw material. We are axercising the strict control on procurement of genuine raw material as per customer specifications. Links are hardened and tempered to avoid linear elongation and to get better impact strength.

Currently we are manufacturer the following series fo forged links and pins :

  • Pitch 76mm links
  • Pitch 102mm links
  • Pitch 142mm links
  • Pitch 160mm links
  • Pitch 200mm links
  • Pitch 216mm links
  • Pitch 260mm links
  • In standard, heavy, standard-double, heavy-double.

Forged Links Standard Series

Chain Number P T C S F R Pin Hole Diameter
D		 Breaking Loads
TN
mm KN
SEW 101101 101 24 36 8 10 6 14 110
SEW 142111 142 42 50 19 20 11 25 290
SEW 142112 142 54 50 25 27 16 25 370
SEW 142113 142 62 50 28 30 15 25 440
SEW 160114 160 46 46 22 24 15 25 320
SEW 200115 200 60 50 25 27 18 25 380
SEW 216116 216 64 72 26 28 20 35 585
SEW 210117 260 65 75 31 33 20 35 840

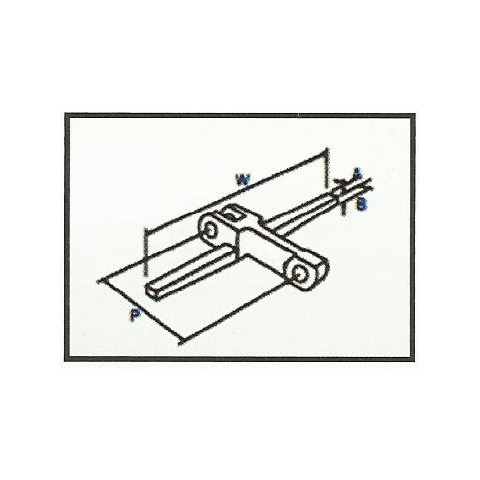

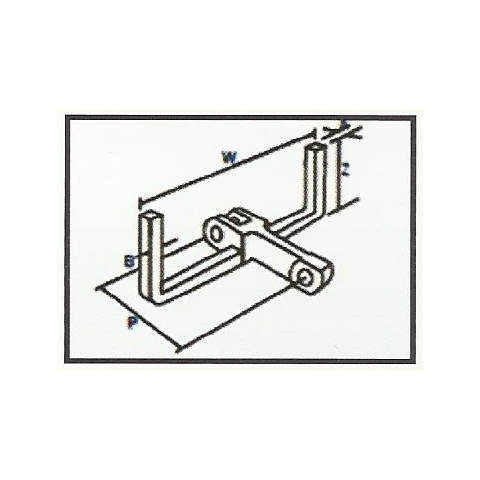

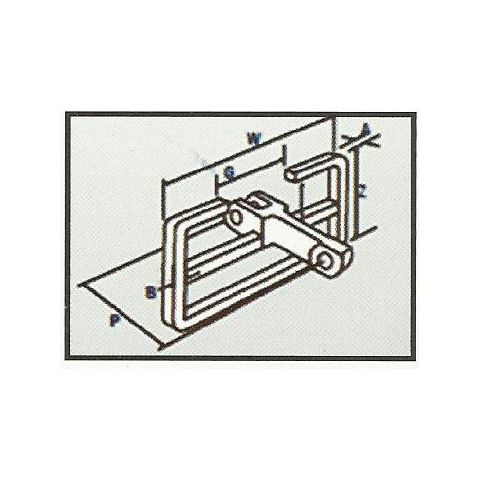

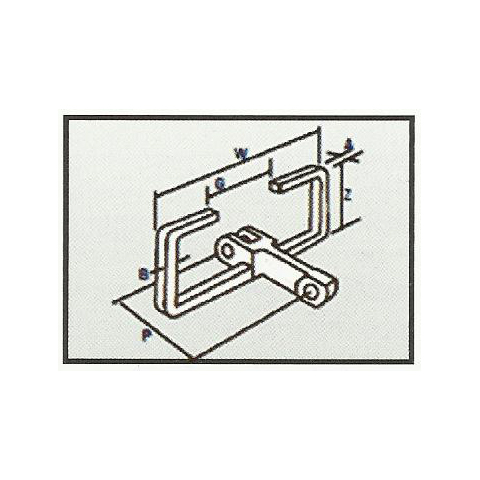

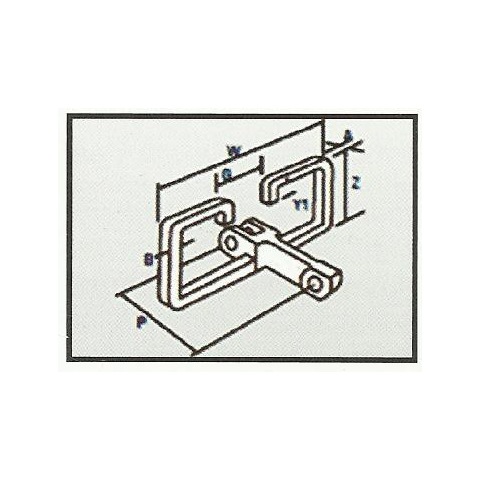

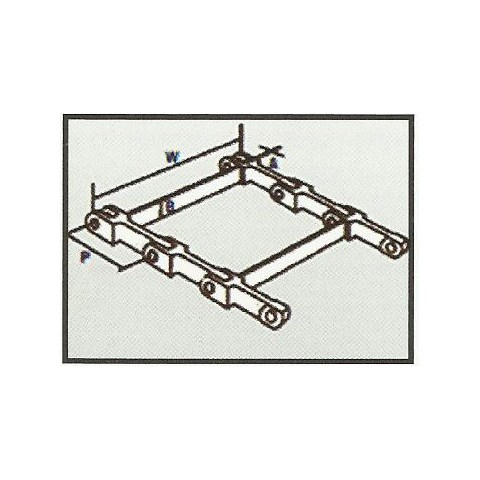

Typical Flight Arrangement
